What a padding mangle does

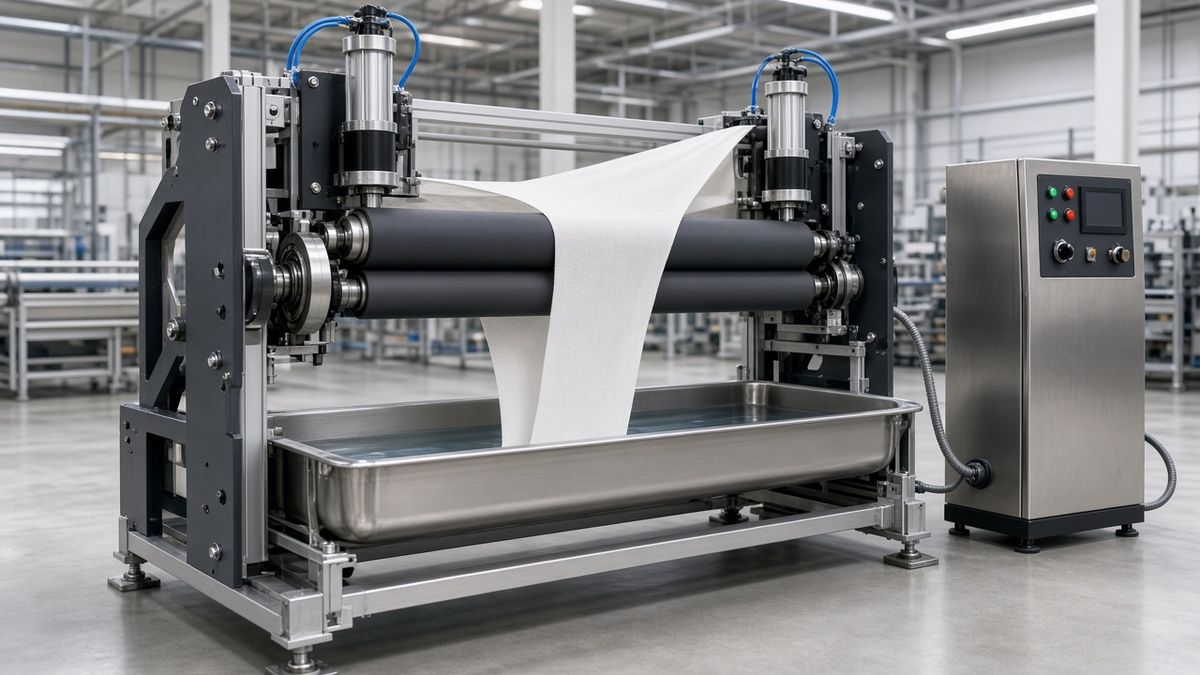

The cloth goes through a trough of liquor and then between two heavy rollers. The rollers squeeze out the excess and leave a set amount of liquor on the cloth. That amount is the wet pick-up.
Nearly every continuous dyeing range and chemical finishing line starts with a padder. It is also the first stage of cold pad-batch dyeing and pad-dry bleaching.
Padder or squeezer
A padder dips first and then squeezes. A squeezer or water mangle only squeezes out water. The padder's job is to put chemical on evenly. The squeezer's job is to remove water before drying.
Technical data (Runda ranges)
| Item | LMH035 cold bleaching range | LMH101 padding, mangling and drying range |
|---|---|---|
| Working width | 1,800 to 3,200 mm | Per order |
| Machine speed | 30 to 75 m/min | Per order |
| Total power | 10.6 kW | Per order |
| Fabric entry | Open width in, large-roll A-frame out | Open width |
| Use | Padding of pure cotton in pretreatment, thickening size liquor for desizing | Padding, mangling and drying of cotton, chemical fibre and blends |
Figures are the published data of each range. Roller type and hardness, trough size and options are set per order.
Typical process values
Wet pick-up depends on the fibre and the process. For dyeing, cotton is about 55 to 70%, polyester-cotton about 45 to 50%, viscose about 85 to 95%. For finishing, about 55 to 75%.
Roller hardness depends on the cloth. Woven fabric commonly uses rubber at about 70 to 80 Shore, knit fabric about 50 to 60 Shore.
How to choose
Tell us the lowest wet pick-up you need and the widest fabric. Both set roller size and pressure.
An even squeeze across the full width matters more than top speed. Ask about roller crown and pressure control.
Decide what comes next. Padded cloth goes to a dryer, a stenter, a steamer or a batching stand. We can supply the full line.
Frequently asked questions
Is Padding Range the same as padding mangle?
A padding range is a line that includes a padder. The padder itself is called a padding mangle, padder or pad mangle.
Do you supply cold pad-batch equipment?
Yes. The LMH035 range is built for cold pad-batch bleaching of cotton. Dyeing versions can be quoted.
What do I send for a quote?
Fabric type and weight, widest fabric, wet pick-up target, chemical or dye used, line speed, and destination country.
