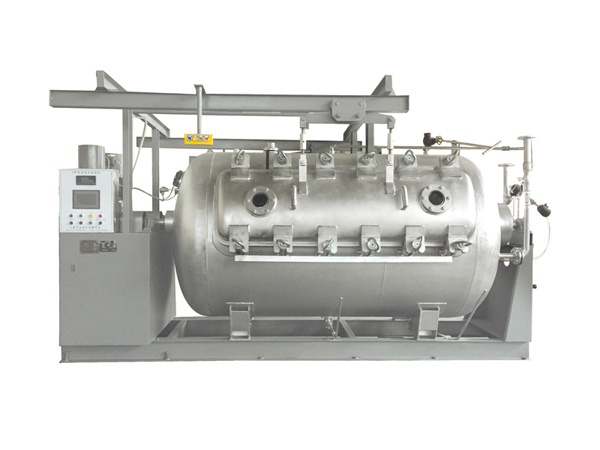

What the GR680-1000 HTHP jigger is built for
The GR680-1000 is a high-temperature high-pressure automatic jigger from the GR680 series. The closed vessel allows dyeing above 100 °C, so polyester can be dyed with disperse dye in an open-width, low-tension process.
Runda lists synthetic, cotton and linen fabrics with disperse, sulfur, vat, direct and reactive dyes. Scouring, soaping and washing run at constant speed and tension.
Published roll diameter is given as 680, 1,000 to 1,200 mm. The GR680-1200 is the other model in the series.
Published specifications: GR680-1000 HTHP Jigger
| Item | Published value |
|---|---|
| Main roller diameter | 220 to 325 mm |
| Max fabric roll diameter | 680, 1,000 to 1,200 mm |
| Max fabric width | 1,600 to 3,400 mm |
| Adjustable fabric tension | 0 to 90 kg |
| Adjustable fabric speed | 0 to 130 m/min |
| Fabrics | Synthetic, cotton and linen |
| Dyes | Disperse, sulfur, vat, direct, reactive |
| Other processes | Scouring, soaping and washing |
Figures are the published data of the GR680-1000 series. Working temperature, pressure rating and liquor ratio are confirmed in the data sheet before ordering.
Typical points for HTHP automatic jiggers (reference values per industry standards)
| Item | Reference value | Note |
|---|---|---|
| Working temperature | 130 to 140 °C | Confirm the rated value with Runda |
| Soaping and clearing | 70 to 90 °C | After disperse dyeing |
| Typical lot length | 500 to 2,000 m | Depends on fabric weight and roll size |
Reference values per industry standards for this type of machine. Final figures for an order are confirmed in the quotation.
Selection points for the GR680-1000
Polyester focus. This model is the first choice for polyester woven fabric where a jet machine marks or creases the cloth.
Roll size. Published up to 1,200 mm in the series. If your rolls are larger, compare the GR680-1200 page.
Width. Published 1,600 to 3,400 mm. Confirm which exact width is built for your order.
Tension. 0 to 90 kg adjustable. Light cloth needs low tension; ask about the minimum steady value.
Documents. Pressure vessel rules vary by country. Give your destination early.
Typical applications of the GR680-1000 HTHP Jigger
- Disperse dyeing of polyester woven fabric
- Dyeing of cotton and linen with soaping
- Blend fabric in two-step dyeing
- Low-tension dyeing of fabric that marks in a jet
Configuration options
- Cloth discharge unit (optional)
- Liquor circulation upgrade (optional)
- Dosing tank with program control (optional)
- Central control for several jiggers (optional)
Items marked optional are available on request. The final configuration is confirmed on the quotation.
GR680-1000 HTHP Jigger: frequently asked questions
What dyes does it use?
Disperse, sulfur, vat, direct and reactive dyes.
What is the width range?
1,600 to 3,400 mm.
What is the difference from the GR680-1200?
Published data matches except for roll diameter. See the GR680-1200 page for the larger roll.
Where are pressure and temperature given?
Ask us for the rated figures and certificate for your market.
